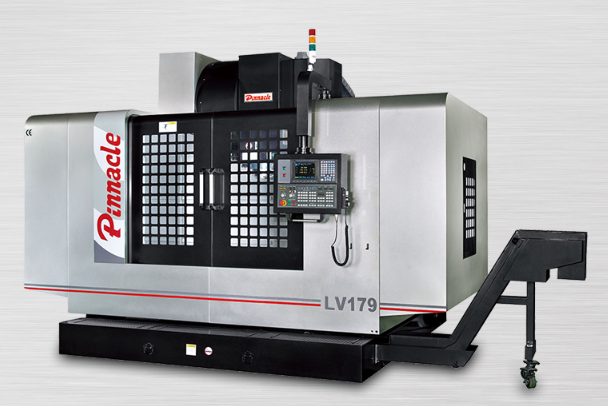

| TABLE |
|
|
|
| TABLE SIZE (mm) |
1700 x 850 |
2000 x 850 |
2200 x 850 |
| TRAVEL RANGES (X/Y/Z mm) |
1500 / 900 / 850 |
1700 / 900 / x 850 |
2000 / 900 / x 850 |
| MAX. TABLE LOAD (kgs) |
2000 |
2500 |
3000 |
| SPINDLE NOSE TO TABLE SURFACE (mm) |
100 ~ 950 |
100 ~ 950 |
100 ~ 950 |
| T-SLOT (Width x Distance x Number mm) |
18 x 150 x 5 |
18 x 150 x 5 |
18 x 150 x 5 |
| SPINDLE | | |
|---|
| TOOL SHANK & PULL STUD |
ISO40 |
ISO50 |
| SPINDLE INNER DIAMETER (mm) |
Ø70 |
Ø100 |
| SPINDLE CENTER TO COLUMN (mm) |
950 |
950 |
| SPINDLE SPEED (rpm) Belt |
40 ~ 8000 |
40 ~ 6000(8000) |
| SPINDLE SPEED (rpm) Gear |
L40~2000,H2001~8000 |
L40~1500,H1501~6000 |
| DRAW BAR FORCE (kgf) |
950 |
2000 |
| MAIN MOTOR (con/30min kw) |
11 / 15 |
15 / 18.5 |
| FEED RATE | | | |
|---|
| RAPID FEED RATE (X/Y/Z m/min) |
24 / 24 / 16 |
24 / 24 / 16 |
24 / 24 / 16 |
| FEED RATE (X/Y/Z mm/min) |
10000 |
10000 |
10000 |
| AXIS SERVO MOTOR | | | |
|---|
| MITSUBISHI (Kw) |
HF703 (7.0) |
HF703 (7.0) |
HF703 (7.0) |
| FANUC (Kw) |
α22/3000i (4.0) |
α30/4000i (7.0) |
α30/4000i (7.0) |
| SIEMENS (Kw) |
1FK7105 (8.2) |
1FK7105 (8.2) |
1FK7105 (8.2) |
| FAGOR (Kw) |
FXM 75.20A (7.0) |
FXM 75.20A (7.0) |
FXM 75.20A (7.0) |
| HEIDENHAIN (Kw) |
QSY190C (7.2) |
QSY190C (7.2) |
QSY190C (9.6) |
| AUTO TOOL CHANGER | | |
|---|
| MAG TYPE |
PLATE / DISK |
DISK / CHAIN |
| CAM TYPE |
GENOVA / DAUL ARM |
DAUL ARM |
| TOOL SELECTION (Bi-direction) |
ABSOLUTE / RANDOM |
RANDOM |
| TOOL STORAGE CAPACITY (pcs) |
20 / 24 |
24 / 32 |
| MAX. TOOL DIAMETER (mm) |
Ø90 / Ø100 |
Ø115 / Ø127 |
| MAX. TOOL LENGTH, WEIGHT |
250mm, 8kgs |
350mm, 20kgs |
| MISCELLANEOUS | | | |
|---|
| AIR REQUIREMENT (Kg/cm²) |
6 |
6 |
6 |
| VOLTAGE |
220V, 3Ph,50/60Hz |
220V, 3Ph,50/60Hz |
220V, 3Ph,50/60Hz |
| POWER REQUIREMENT (KVA) |
40 |
40 |
40 |
| COOLANT TANK CAPACITY (L) |
700 |
700 |
700 |
| MACHINE WEIGHT (Kgs) |
14000 |
15000 |
16000 |
| MACHINE HEIGH (mm) |
3200 |
3200 |
3200 |
| FLOOR SPACE (LxW mm) |
4050 x 2900 |
4450 x 2900 |
5000 x 2900 |
