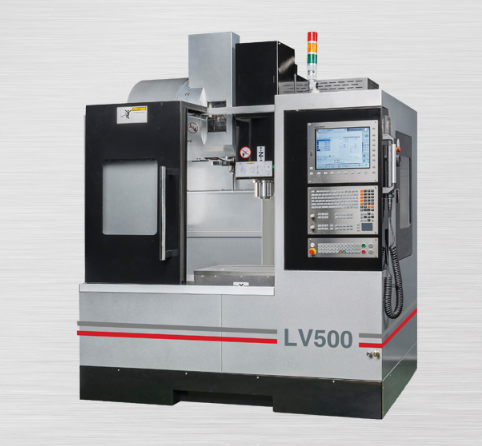

LV500/LV500B/LV500D
| MODEL | LV500B | LV500D | LV500 |
|---|---|---|---|
| Table Size(mm) | 650*400 | ||
| Travel Range(X*Y*Z mm) | 550*400*400 | ||
| Max. Table Load (kgs) | 250 | ||
| T-Slot | 14*100*3 | ||
| Type of Guideway | Roller | ||
| Spindle Nose to Table Surface | 120~520 | 90~490 | |
| Spindle Taper | #30 | #40 | |
| Spindle Type | Buit-in | Direct-Drive | Direct-Drive |
| Spindle Inner Diameter (mm) | 45 | 45 | 60 |
| Spindle Center to Column (mm) | 423 | ||
| Spindle Speed(rpm) | 24000 | 12000 (15000) |
10000 (12000/15000) |
| Draw Bar Force (kgf) | 350 | 650 | |
| Spindle Power Kw | 4.6/5.3(S1/S6) | 3.7/5.5 | 5.5/7.5 |
| Rapid Feed Rate (X/Y/Z m/min.) | 36/36/36 | ||
| Feed Rate (X/Y/Z mm/min.) | 10000 | ||
| Axis Motors (FANUC) Kw | B12/3000i (1.8) | ||
| Axis Motors (MITSUBISHI) Kw | HF154 (1.5) | ||
| Axis Motors (HEIDENHAIN) Kw | QSY96 (1.4) | ||
| Magazine Type | Disk | ||
| ATC Type | Arm | ||
| Tool Selection | Radom | ||
| Tool Number | 20 | ||
| Max. Tool Diameter (mm) | 55 | 93 | |
| Max. Tool Length (mm) | 200 | 250 | |
| Max. Tool Weight (Kgs) | 4 | 8 | |
| Air Requirement (kg/cm2) | 6 | ||
| Power Requirement (KVA) | 10 | ||
| Coolant Tank Capacity (L) | 150 | ||
| Machine Weight (kgs) | 3000 | ||
| Floor Space (L*W*H mm) | 1900*2110*2550 | ||
